GIGABYTE Alaplap AM4 B550M AORUS ELITE AMD B550, mATX (B550M AORUS ELITE)

37 545 Ft

CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors (Please refer "CPU Support List" for more information.) Chipset AMD B550 Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacit...

Cikkszám: c287757 (B550M AORUS ELITE)

Elérhető

Termék kategória: Komponens → Alaplap

Leírás
Tulajdonságok

CPU
1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD B550
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. 3rd Gen AMD Ryzen™ Processors:
  Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
3. New Generation AMD Ryzen™ with Radeon™ Graphics processors:
  Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
1. Realtek^® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:
1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
1. Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
1. Supporting PCIe 3.0 x1 mode
Storage Interface
1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
1. Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
1. Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 2 x addressable LED strip headers
6. 2 x RGB LED strip headers
7. 1 x CPU cooler LED strip/RGB LED strip header
8. 2 x M.2 Socket 3 connectors
9. 4 x SATA 6Gb/s connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x USB 3.2 Gen 1 header
13. 1 x USB 2.0/1.1 header
14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
15. 1 x serial port header
16. 1 x Clear CMOS jumper
17. 1 x Q-Flash Plus button

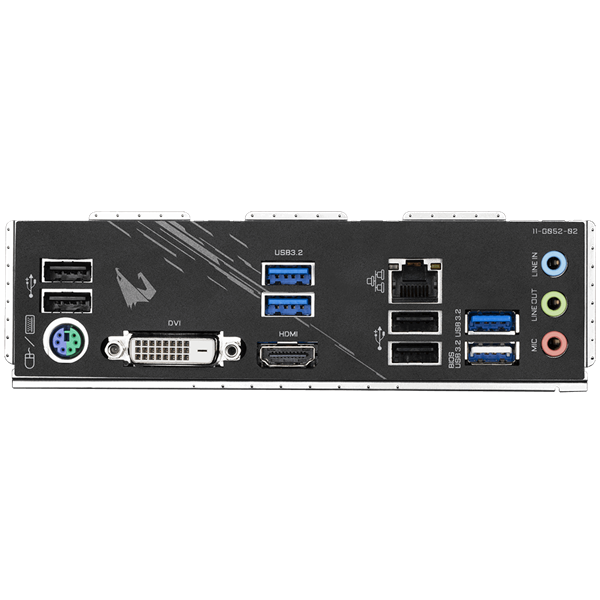

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x HDMI port
4. 4 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 24.4cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Tulajdonságok

Gyártó:	GIGABYTE
Audio:	7.1 HD
Chipset gyártó:	AMD
Foglalat típusa:	AM4
Form Factor:	mATX
Grafikus foglalat:	2 x PCI-Ex16x
VGA integrált:	Nincs
Kivitel:	Dobozos
LAN1:	10/100/1000 Mb/s
Max memória:	128
Memória foglalatok száma:	4 db
Memória órajel:	3200 MHz
Memória típus:	DDR4
PCI foglalatok száma:	0
PCI-E foglalatok száma:	1
Raid:	Igen
SATA III:	4
PS/2 Port:	1
